Closed-loop AF actuator for M12 camera modules

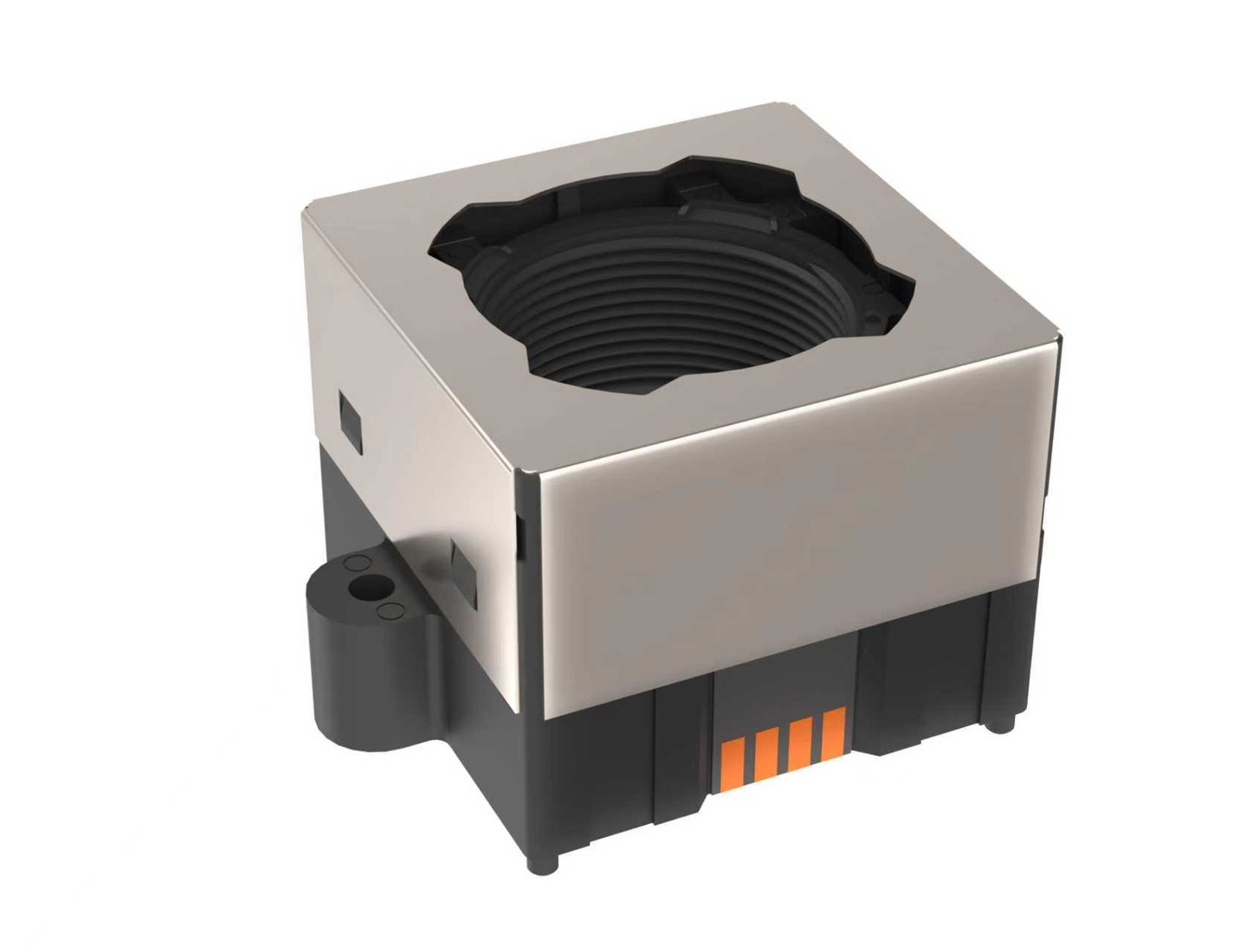

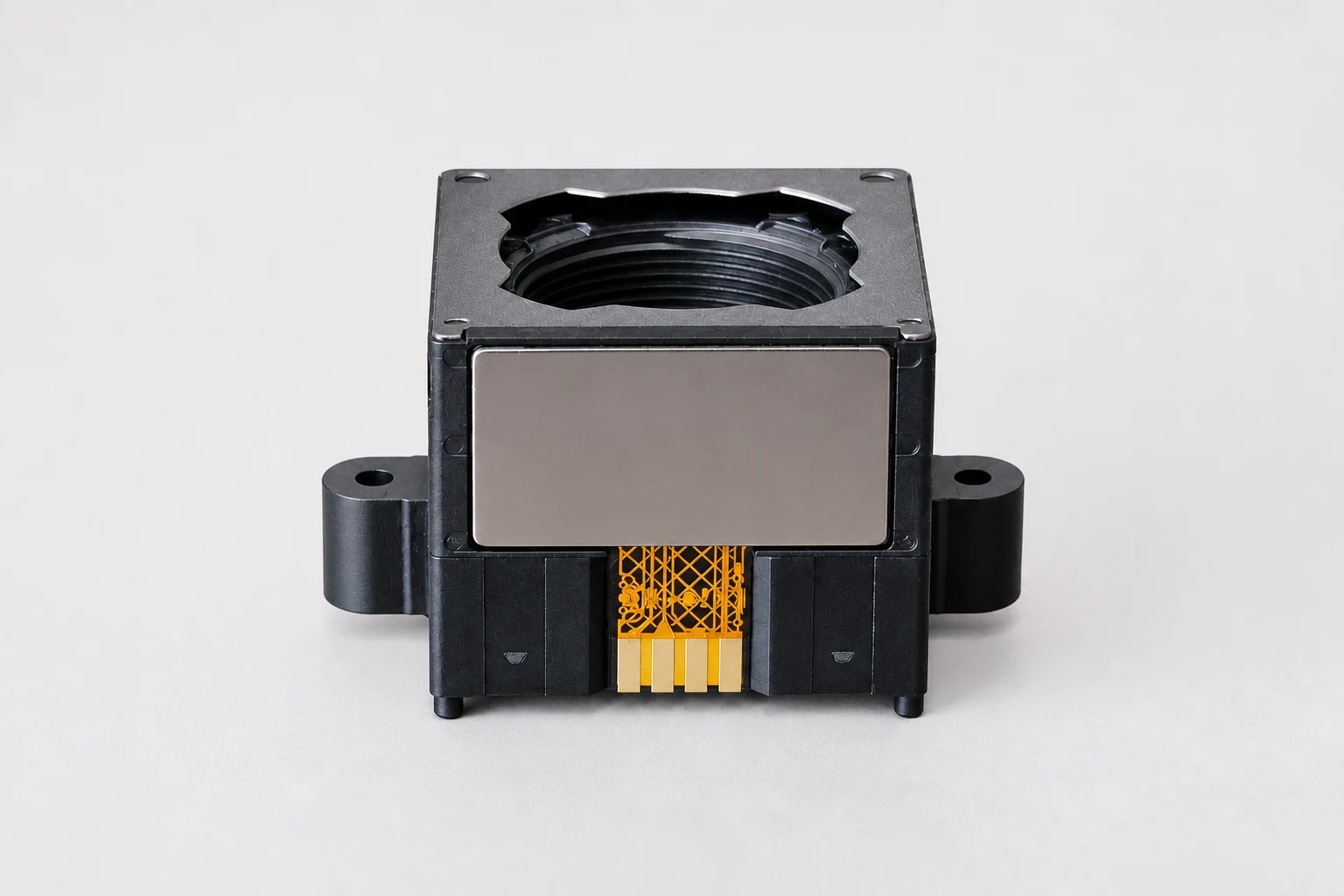

SDA03 Closed-loop AF VCM Actuator
A compact closed-loop autofocus voice coil motor designed for industrial vision, security camera and web camera systems that require controlled lens movement and position feedback.
1000 um
Rated AF stroke
8 g
Lens mass support
<= 10 um
Hall accuracy
3.3 V
AF input voltage
Product overview
Closed-loop control for stable M12 autofocus movement
SDA03 is a closed-loop autofocus VCM actuator developed by Beijing MTS Electronics Co., Ltd. It combines a guided moving structure, Hall position feedback and I2C control interface in a compact 18.3 x 18.3 x 14.15 mm package.
The actuator is designed for M12 x P0.5 lens applications where a camera module needs controlled autofocus positioning, guided lens travel and support for compact lens assemblies up to 8 g.
Target applications
Built for practical imaging systems
Security Cameras
M12 camera modules requiring controlled focus adjustment and stable movement.
Web Cameras
Autofocus modules for high-quality video devices and conferencing camera systems.
Project Evaluation
Drone camera and other compact imaging projects can be reviewed case by case.
Technical specifications
SDA03 preliminary parameters
| Product model | SDA03 / MTS-S364-00 |
|---|---|
| Actuator type | Closed-loop AF Voice Coil Motor |
| Lens type | M12 x P0.5 |
| Outline dimensions | 18.3 x 18.3 x 14.15 mm, with terminal |
| Weight | 4.00 g max, without lens |
| Lens mass | 8 g |
| Rated AF stroke | 1000 um |
| AF Hall accuracy | <= 10 um |
| AF linearity | <= 15 um |
| AF moving tilt | <= 8 min |
| AF input voltage | 3.3 V |
| AF rated current | <= 120 mA |
| Maximum current | 150 mA |
| Driver compatibility | I2C-compatible AF driver |
| Interface | 1 SDA, 2 SCL, 3 GND, 4 VDD |
| Operating temperature | -30 to +70°C |
| Storage temperature | -40 to +85°C |

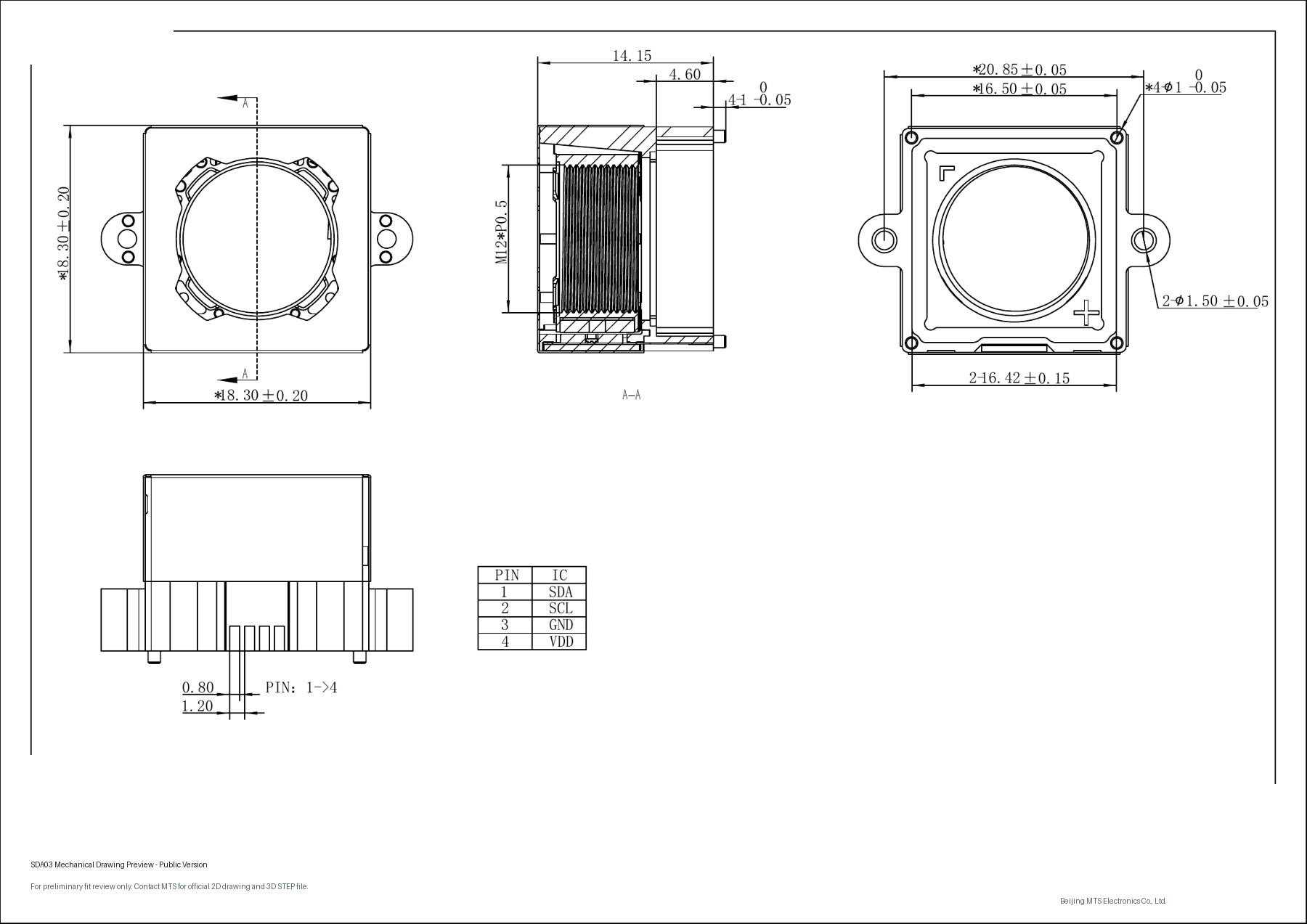

Mechanical drawing preview
Check the key dimensions before engineering review
The SDA03 public drawing preview helps camera module engineers quickly review the outline size, M12 thread, mounting features and 4-pin interface before requesting samples or STEP files.
Engineering and production support
Actuator development backed by manufacturing and test capability
Beijing MTS Electronics has been developing and manufacturing camera autofocus systems and micro-actuator products since 2007. The company supports camera module customers with actuator design, manufacturing and project-based engineering review.
- Closed-loop AF actuator development

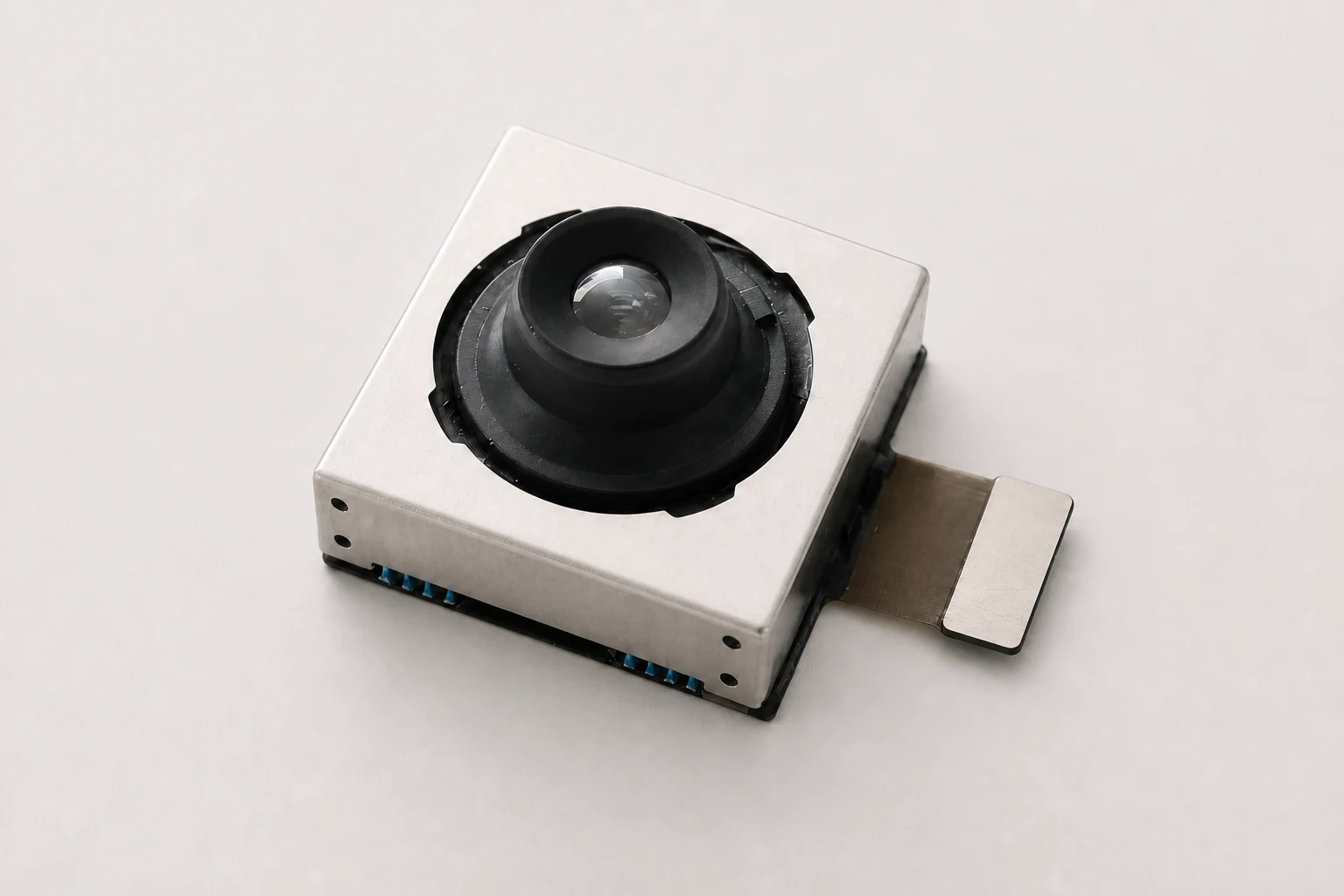

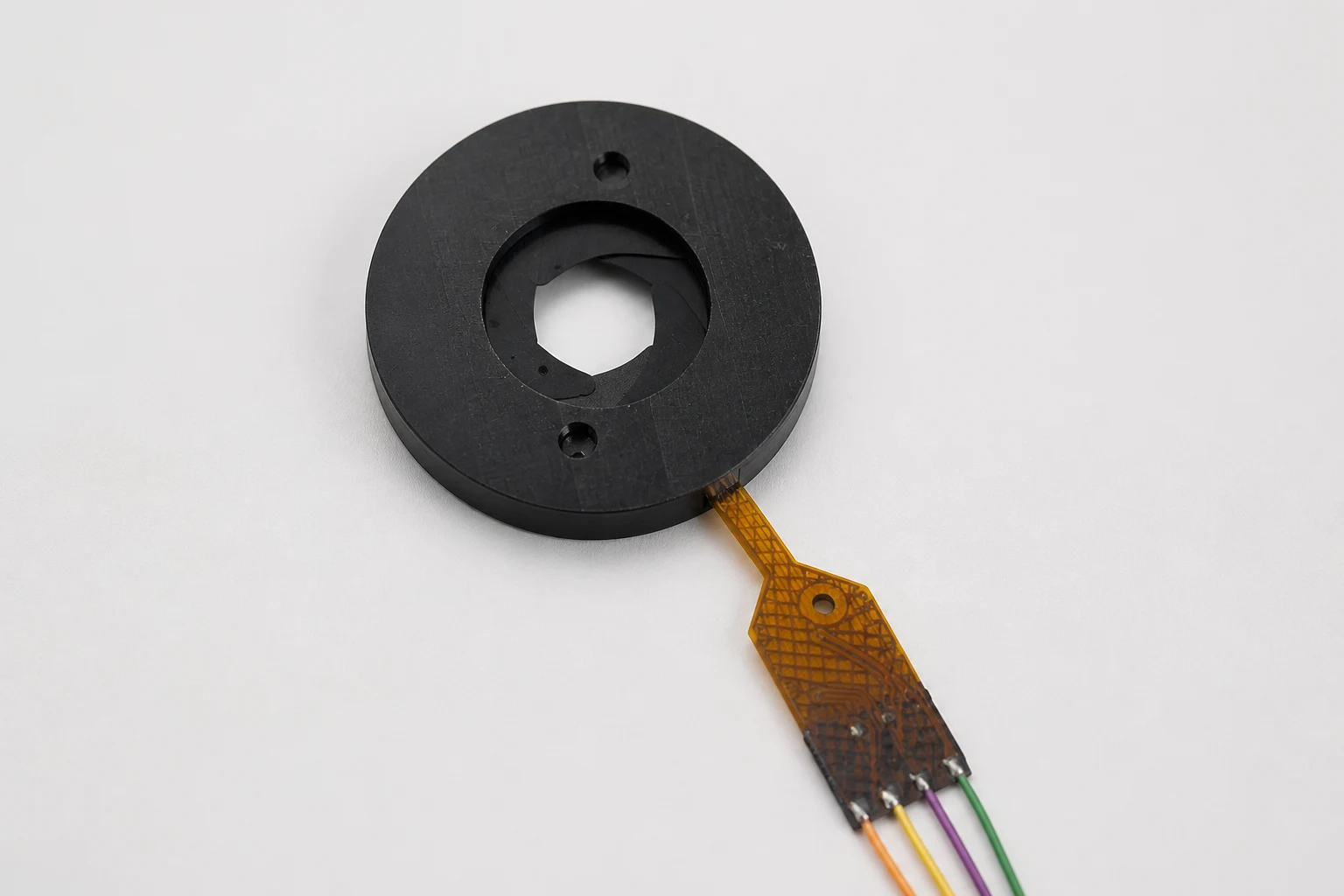

- Closed-loop AF, OIS, sensor AF, IR-CUT AF and variable aperture platforms

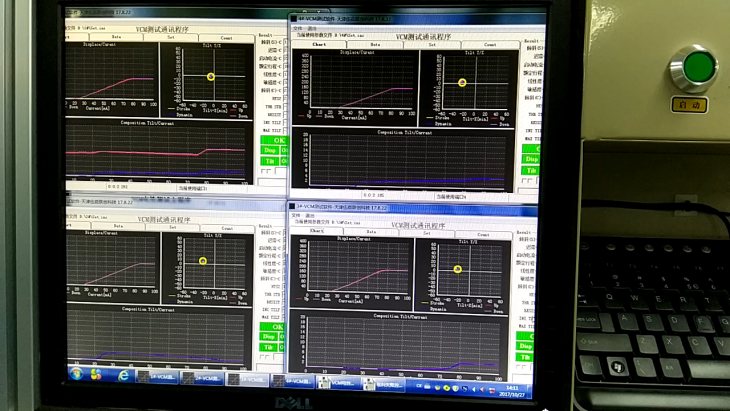

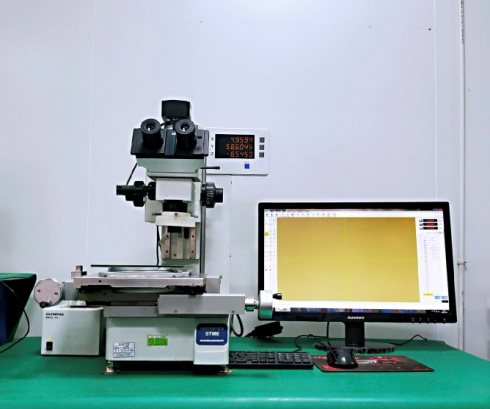

- Precision measurement and reliability testing equipment
- Automated manufacturing process support
- ISO quality management system
- Patent portfolio covering autofocus actuator and camera module technologies
Sample and documentation
Prepared for engineering evaluation
Available Documents
Datasheet, 2D drawing and 3D STEP file are available for standard SDA03 project review.
Sample Support
Engineering samples are available for qualified project evaluation. Sample arrangement and logistics terms can be confirmed during the inquiry process.
Lead Time
Standard mass production lead time is about 40 days from order to initial shipment. If stock is available, handling can be completed within one week.
Start an engineering review
Request SDA03 datasheet, drawing or samples
Tell us your camera module type, lens size, target application, required stroke and evaluation schedule. For samples, official 2D drawings or 3D STEP files, send the project details to our team and we will review the next step.
